Rotary rack ovens

Our rotor ovens for bakeries are designed and made entirely by our company since 2013. When we designed these machines the main goals were to produce a reliable, long lasting, easy maintenance product with competitive prices. In on our main markets, much of our customers usually operate the ovens at high operating factors (more daily working hours, more production output, etc.). Our ROTOMAX ovens are designed to serve these intense,  2-3 daily working shift requirements.

0
We sold more than 200 rotor ovens in Hungary since we started production

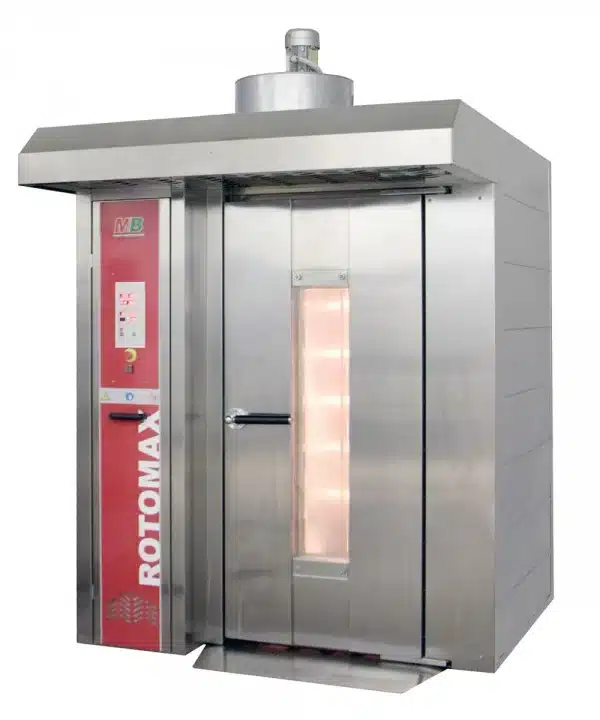

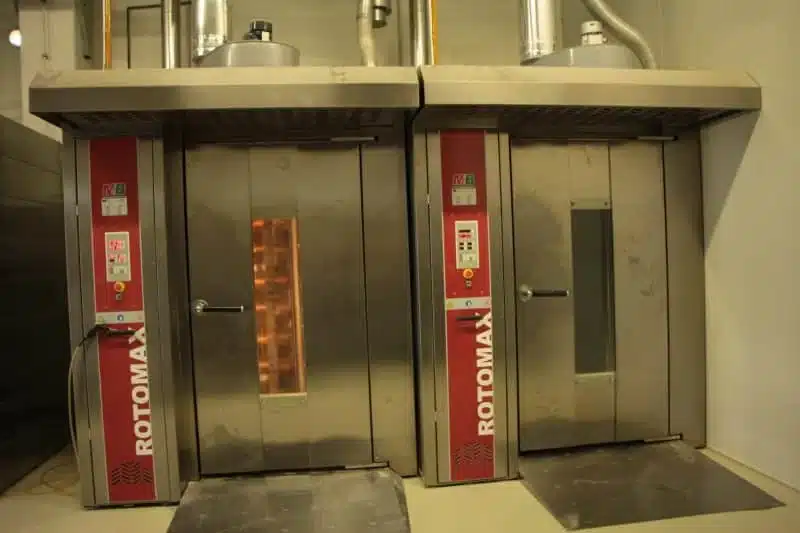

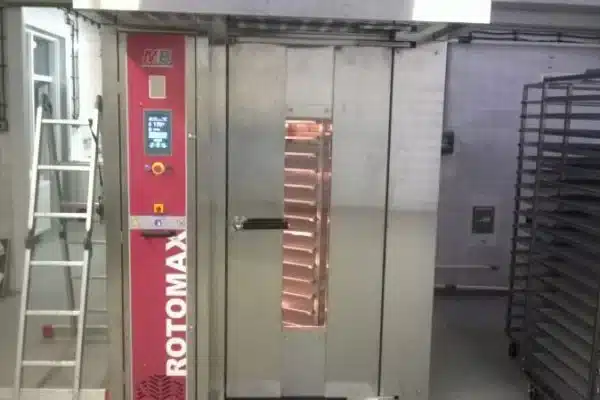

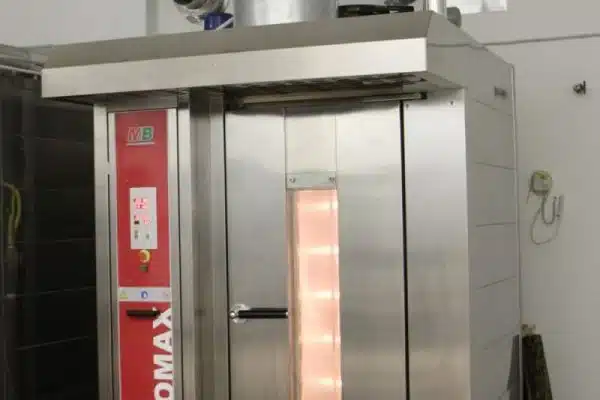

ROTOMAX series

Robust and reliable construction, fast heat regeneration, high amount of steam, low maintenance needs and long lifetime – these are the main advantages of our ovens.

Our machines can be manufactured with almost all kind of heating: gas (natural and PB), oil, electric and pellet. In case our oven is working with a gas burner – thanks to the efficient heat exchanger with big surface -, the difference in temperature between the baking and outgoing flue gas can be only between 30-50 Celsius. This makes our product one of the most efficient oven at the market.

Besides our standard trolley connection, our ovens can be manufactured with all the trolley connections used by our customers existing ovens (POLIN, MIWE, KÖNIG, WERNER, BONGARD, / lower hook, upper hook, rotating platform, etc.). Because of this, there is no need to use several kind of trolleys in case our customer already operating any kind of rotor oven from a different manufacturer. Or there is no need to replace all trolley in case our customer buy an oven from us.

  • Big surface, efficient and fast regenerating heat exchanger is made from special stainless steel materials. Extra flame retardants are installed inside the ovens.
  • Front and side covers, chamber inside is entirely made from stainless steel.
  • Air circulation unit made especially for rotor ovens with low maintenance needs.
  • Long lasting silicone door insulation with support.
  • Automatic trolley positioning after door opening.
  • Motorized steam damper (can be programmed in case of need).
  • Basement plate is made from 3 mm thick stainless steel and have extra reinforced columns across for stronger support over the years of operation and heat stress.
  • 3 pieces of air circulation columns, easy setting, even baking all over the trolley.
  • Easy to replace baking chamber lights.
  • All electric parts and the gas burner can be maintained from the front. The two sides and the back can be oven can be built next to other machines or walls.
  • Steam suction hood.
  • 12VAC controls.
  • Acoustic and light signal at the end of baking cycle.
  • The oven is made from 3 big modules and some smaller parts. This makes possible to bring inside the bakery on a regular door in case of need.

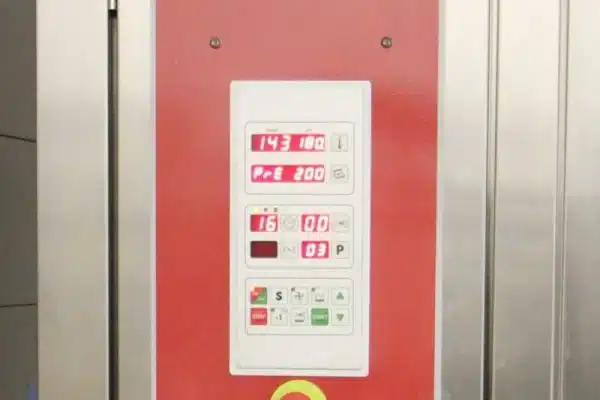

  • In standard, the oven is equipped with a digital control panel: pre-heating, actual and set temperature display, baking time setting, programming, alarm signals, automatic start up, automatic or manual steaming, extra baking time, 4 phase baking cycles, automatic or manual steam dumper, manual baking cycle.

Options:

  • Rotating platform
  • Touch panel controls with optional remote interface
  • Modification for existing trolley support
Model Tray sizes Number of trays Width Length Height Weight Burner capacity*
 Resistances capacity**


cm db cm cm cm kg kW kW
ROTOMAX 40/60
 40 x 60
 12 152 131 195 1.050 40 32
ROTOMAX 40/60
 40 x 60
 18 152 131 269 1.250 45 35
ROTOMAX 60/80
 60 x 80
58 x 78		 18 178 157 269 1.950 55 50
ROTOMAX 58x98 58 x 98
60 x 100		 18 198 187 269
  2.100 70  70
ROTOMAX 58x98H 58 x 98
60 x 100		 20 198 187 269
  2.250 73  75

*oven equipped with gas burner, oil burner or pellet burner
**oven equipped with only electric resistances
